Central transmission mud scrape

he central transmission mud scraper mainly consists of a driving device, a main shaft, a railing, a steel beam, a vertical grid, a support, a mud scraper, an overflow weir plate, a pull rod, a small scraper, underwater bearings, a steady flow cylinder, an electric control box, and other component groups.

Product Advantage

1.The transmission part adopts dual overload protection of electrical and mechanical components, making operation safer and more reliable.

2.The underwater part is made of stainless steel, which is corrosion-resistant and has a long service life.

3.The bottom of the pool is used for mud scraping, and the driving device is driven by a deceleration drive mechanism, which is compact in structure and high in mechanical efficiency;

4.Diagonal scraper with good continuity and high efficiency in collecting mud; Install a rubber scraper under the stainless steel scraper to ensure that the scraper is thoroughly clean and there will be no floating mud.

5.The slope ratio of the pool bottom is 1:10, and the sludge resistance during mud scraping can be ignored.

6.The main beam is made of square steel with high structural strength. It adopts the process of hot-dip galvanizing followed by topcoat spraying, which has strong anti-corrosion performance. The main beam can also be directly poured with concrete, which saves more investment.

7.Easy to operate and can achieve remote control.

Applicable scope

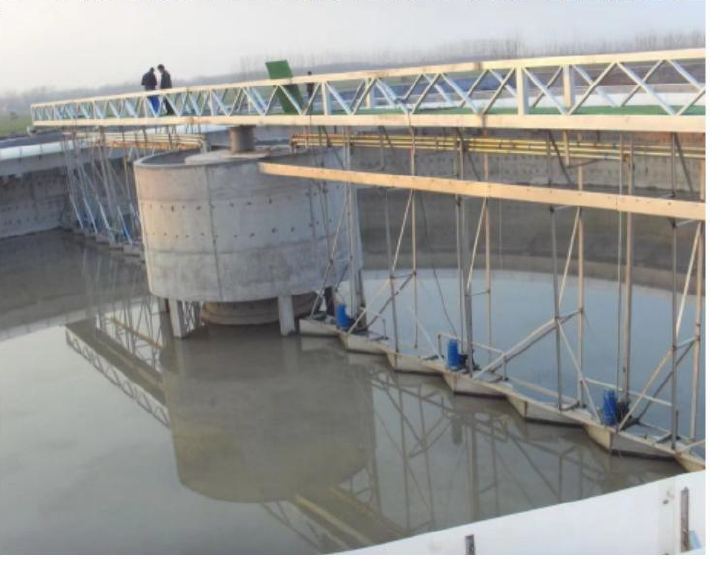

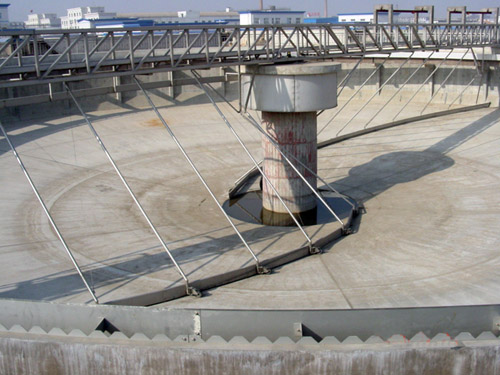

The central transmission mud scraper can be widely used in sewage treatment projects in industries such as urban, chemical, light textile, and metallurgical industries. Its structure is reasonable, efficient, and easy to operate and maintain, making it an ideal supporting facility for sewage treatment engineering.
